Odour Sampling Equipment Supplier Saudi Arabia
Saudi Odour Monitoring is an odour sampling equipment supplier in Saudi Arabia, providing the Scentroid VC20, SF450, SW60 and DS5. Odour sampling hardware must match the source. A bag-filling chamber, surface flux chamber, ventilated wind tunnel and hot-stack dilution probe do different jobs; they are not interchangeable accessories. The Scentroid VC20, SF450, SW60 and DS5 create a practical equipment family for collecting samples from ambient air, liquid or solid surfaces and hot ducts or stacks when used under a suitable method.
We supply odour-sampling products and related selection support for projects across Saudi Arabia. You receive a written proposal setting out the configuration, scope, lead time and price. Request a quotation
Equipment supply does not replace the sampling method, plan or analysis that applies to your project; a qualified sampling team or laboratory approves the plan, operates the hardware where required and controls sample integrity.

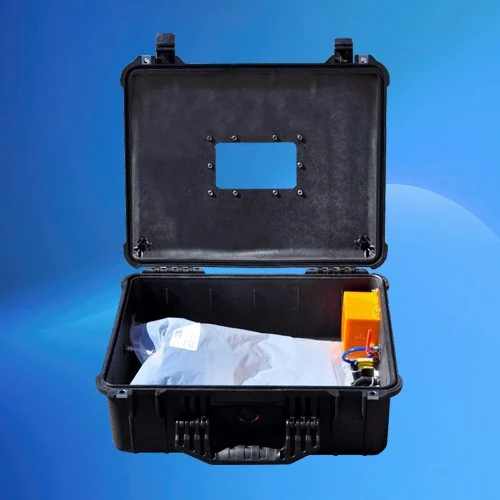

VC20: fill a bag without drawing sample through the pump
The VC20 is a portable vacuum chamber for sample bags. A pump evacuates the rigid chamber around the bag, causing sample air to enter the bag through its line without passing through the pump. Scentroid documents a built-in pump, rechargeable power, a viewing window and a purge function. The chamber can receive ambient air or connect downstream of other devices such as a flux chamber or wind tunnel.
The selected bag material, fittings, tubing, flow and cleaning procedure still depend on the compounds and analytical method. A convenient chamber does not prevent adsorption, reaction, diffusion or contamination if the rest of the sampling train is unsuitable.
SF450: isolate a defined solid or liquid surface
The SF450 flux chamber covers a known surface and uses sweep air so emissions can be collected from within the chamber. Scentroid describes all-stainless-steel construction, fittings for sweep and sample air, and stainless-steel flotation for use on liquid surfaces. Manufacturer examples include settling tanks, ponds, compost, sludge and aerated lagoons.
Flux-chamber results depend on the defined area, sweep flow, equilibration, temperature, surface disturbance and calculation method. Placing a chamber on one point does not automatically represent an entire pond, stockpile or landfill cell. The sampling plan should state how locations and replicates were selected.
SW60: ventilated sampling for passive area sources
The SW60 is a wind-tunnel sampler for passive emissions from solid or liquid surfaces. Scentroid documents a variable air supply, internal flow straightening, a built-in anemometer and an operating air-speed range. The product page associates the design with VDI 3880, EN 13725 and AS 4323.
A wind tunnel imposes controlled airflow over the surface, so its result depends on the method, tunnel geometry, set airflow and source conditions. It is not simply an alternative shape of flux chamber. The responsible specialist should decide which surface method and calculation basis fit the intended emission estimate or sample comparison.
DS5: dilute hot stack gas before the bag
Hot, moist stack gas can condense as it cools in a sample bag. Condensate may change the sample by absorbing odour-active components. The DS5 is a stack diluting sampler that mixes the gas with nitrogen or zero air in a heated probe before collection. Scentroid documents selectable pre-dilution steps from 1:3 to 1:305.
That dilution ratio becomes part of the result and chain of custody. The stack port, temperature, pressure, gas composition, safe access, probe materials, clean gas, leak checks and bag compatibility all require review. Stack sampling must follow site permits and safety controls; the DS5 is hardware, not authorisation to access or sample a stack.
Build the complete sampling train
A workable schedule may include the sampler, compatible bags, PTFE tubing and fittings, clean sweep or dilution gas, regulators, flow measurement, temperature or pressure instruments, blanks, labels, transport containers and cleaning materials. Record sample ID, source, point, start and finish times, flows, dilution, conditions, operator, bag type and deviations.
Holding time and transport temperature should come from the selected method and laboratory instructions. Samples should reach the receiving laboratory within the approved window. The dynamic olfactometry and odour panel support route covers coordinated analysis boundaries, while choosing an odour sampling method explains the source-to-method decision.
Odour sampling equipment supplier in Saudi Arabia: selecting from your source map
Before requesting products, list each source as point, tank headspace, ambient location, active liquid surface, passive liquid surface or passive solid surface. Record temperature, moisture, pressure, access, hazardous-area status, expected compounds and required analysis. The method owner can then select the device, operating procedure and quality controls.
The commercial odour source sampling strategy page is the appropriate next route when the hardware list cannot yet be defined. We quote the specified products and accessories.
Frequently asked questions
What is the VC20 used for, and can any sampling bag be used?
The VC20 is a vacuum chamber for filling a sample bag from ambient air or another sampling device without pulling the sample through the chamber pump. Not every bag suits: material, fittings, conditioning and holding time must be compatible with the target compounds, odour method and receiving laboratory instructions.
What is the difference between SF450 and SW60?
Both address surfaces, but the SF450 is a flux chamber using sweep air over a defined area, while the SW60 is a ventilated wind-tunnel design. The method owner should select the approach.
Why would a hot stack need the DS5?
Pre-dilution with dry clean gas can reduce condensation as hot, moist gas cools in a bag. Dilution and all sampling conditions must be documented.
Does buying the hardware include field sampling?
No. These are products we supply. Field mobilisation, source access, method selection and sample collection require a separately confirmed delivery scope.
Who provides odour sampling equipment in Saudi Arabia?
Saudi Odour Monitoring supplies the Scentroid VC20, SF450, SW60 and DS5 and the related accessories for projects in Saudi Arabia.
What affects the cost of odour sampling equipment?
The devices selected, bag sizes, clean-gas needs, accessories, site safety constraints and destination. The price is set out in your quotation.
How long does delivery of sampling equipment take?
Lead time depends on the devices and accessories selected and is confirmed in the quotation.
Saudi Odour Monitoring serves projects across Saudi Arabia, including Dammam, Al Khobar, Jubail, Riyadh, Jeddah, NEOM and Qiddiya.
For odour sampling equipment from a supplier in Saudi Arabia, send your source types, method and accessory needs. Request a quotation
